A drainage system has one major perk and one major drawback. The advantage is its simplicity. The limitation is that nothing actively pushes wastewater through the system.
Unlike pressure pipework, a DWV pipe system relies completely on gravity. Wastewater moves only because the pipeline has sufficient fall, and air is free to move through the drainage network. There are no pumps maintaining flow in a standard gravity drain, which means every fitting, junction, and grade plays a massive role in how efficiently the system performs.

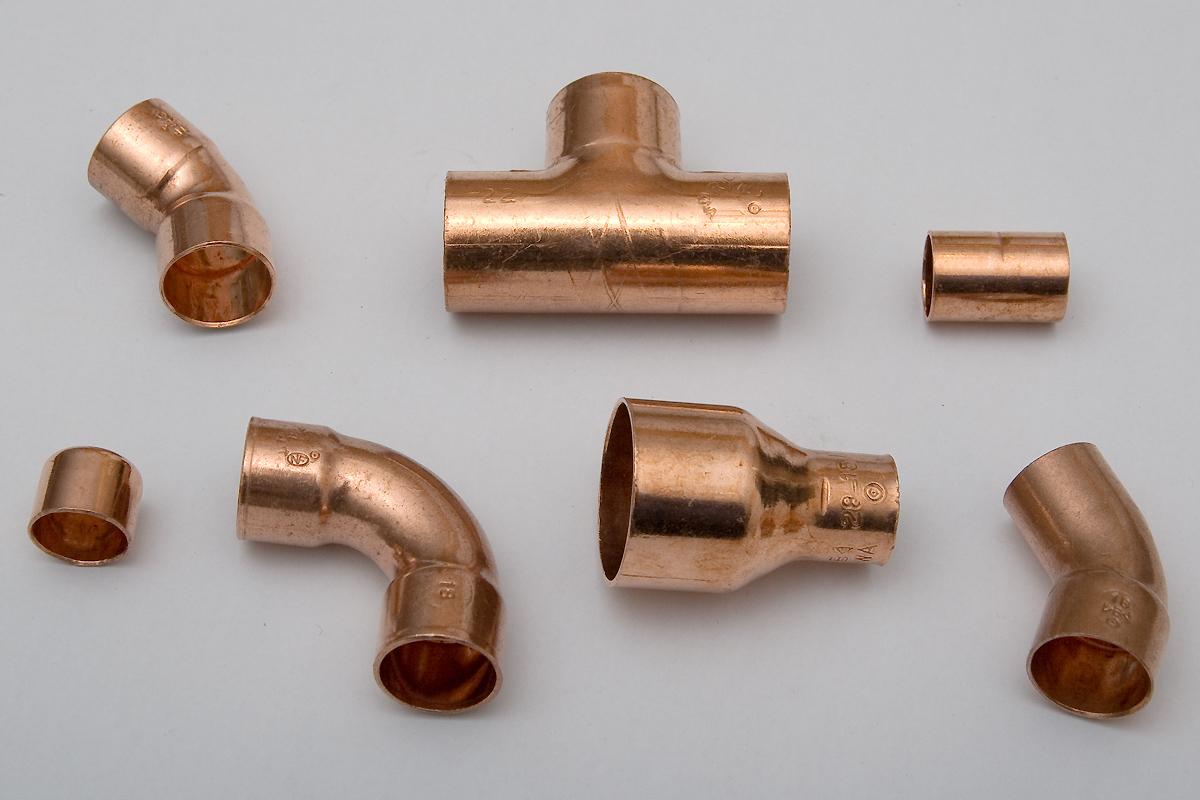

While the straight pipe usually receives most of the attention during installation, it is the junction geometry that determines whether a drainage line remains self-cleansing or gradually develops blockages.
Gravity Flow Depends on Maintaining Velocity
The purpose of a drainage system is not simply to move water. It must also be able to transport solids, organic matter, and suspended particles without clogging the pipe.
To do this, wastewater needs to maintain enough velocity to keep debris moving.
Since gravity is the only driving force, anything that slows the flow increases the likelihood that material will settle in the DWV pipe. Once deposits begin to form, they create rough surfaces that trap additional debris, eventually leading to partial or complete blockages.
For this reason, ensuring smooth flow throughout the drainage network is just as important as selecting the right pipe size.
The Issue With 90 Degree Junctions
One problem occurs when a horizontal branch meets a main drain at a sharp 90-degree angle; the incoming wastewater acts as if it hit a dead end.
Another issue is when the intersecting water flows and crash directly into each other. This makes the water stall, causing it to lose momentum.
The next is when there is no forward movement, solid waste starts to settle at the bottom of the joint. Over time, paper and debris build up against this lip, causing endless blockages.
The Physics of Smooth Transitions
A Wye fitted with a 45-degree angle, called a Combo, allows the water to flow at a 45-degree angle, aligning it seamlessly with the main flow.
Hydrodynamic sweeping allows wastewater to slide smoothly rather than crash into the mainline, using gravity to increase momentum.
This smooth transition creates a scouring effect, which allows water to efficiently sweep solids downstream rather than cause them to settle in junctions.
Why the Rules Flip for Vertical Stacks
While Wyes are game-changing for horizontal connections, the geometry needs to change entirely when connecting a horizontal bar to a vertical pipe.
In a vertical drop, gravity pulls the water down aggressively. Using a standard wye on a vertical stack can direct water across the pipe,, then straight down, pulling water from the opposite side and siphoning it out of plumbing traps.
A sanitary tee is uniquely made with a slight internal curve that guides downwards flow smoothly into the vertical stack without disturbing the system’s air balance.
Bigger Doesn’t Always Mean Better When It Comes to Pipes.
Choosing oversized drainage pipes is a common mistake, and there may be a misconception that wider pipes make wastewater flow more smoothly.
When the pipe is larger, the water in it is shallow, and the wastewater flowing through it moves more slowly. This reduces the pipe’s ability to transport solid waste effectively.
Increasing pipe size, therefore, can reduce self-cleaning performance.
It is important to keep the flow rate in mind when choosing the pipe, as the right pipe size will allow wastewater to flow smoothly without disruptions down the pipe. While a large pipe might carry a lot of water effectively, when the wastewater levels fall, it might struggle to maintain a consistently smooth flow.
A straight pipe doesn’t always mean trouble, but the places where the drain’s wastewater flow slows down, deposits start, and blockages start due to a change in the direction of the pipes.
A thoughtfully designed drainage system conserves the limited energy of gravity. Swept junctions, for example, merge flow and don’t cause collisions.
